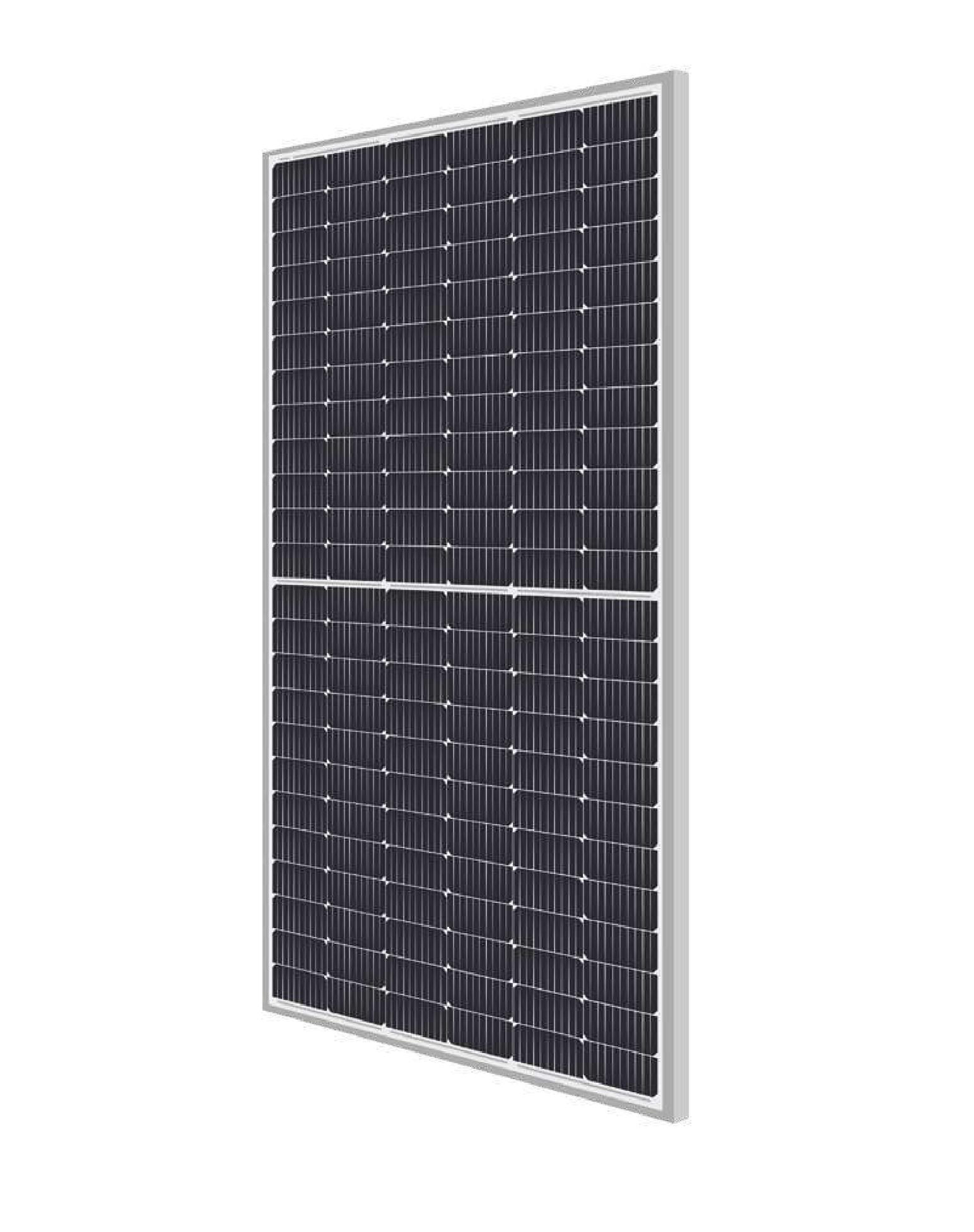

🌞 Lina Solar Panels: LE MEPV 144 HALF-CUT PLUS 550 Wp 🏡

Product Image specifications
📝 Specifications
BLACK - STANDARD - BICOLOUR LE MEPV 450
STC: 1000 W/㎡, module temperature 25ºC, AM 1,5
Nominal power. Pmax 450 Wp
Max. power tolerance. Pmax 0 / +5 W
Area of the module 2,17 ㎡
Module efficiency 20,72 %
Isc 11,50 A
Voc 49,98 V
Imp 10,89 A
Vmp 41,36 V
NOCT: 800 W/㎡, ambient temperature 20ºC, AM 1,5
Nominal power. Pmax 338,64 W
Isc 9,26 A
Voc 47,18 V

Imp 8,71 A
Vmp 38,88 V
Operating parameters. Temperature coefficients
Maximum voltage 1000 - 1500 V
Maximum series fuse rating. Ir 20 A
α Isc 0,046 %/ºC
β Voc - 0,276 % / ºC
γ Pmax - 0,381 %/ºC
Temperature range - 40ºC ~ + 85 ºC
NOCT 42 ± 2ºC
