⚙️ Green roof System's components ⚙️

⚙️Complete solution ☁️Lightness ⚡Efficient installation 🌳Sustainability 🌧️High water absorption 🌡️High thermal performance 🔊High acoustic performance 🔥🚫High fire resistance✅

A green roof system comprises several key components, including a waterproof membrane, drainage layer, root barrier, growing medium, diverse plant selection, irrigation system (as needed), edge profiles, vegetation mats, and various accessories like walkways and structural supports. These elements work in harmony to create environmentally beneficial and visually appealing rooftop gardens while ensuring structural integrity and water management. Additionally, biodiversity enhancements, drainage and buffer boards, and maintenance equipment are integrated to further enhance ecological value and enable regular upkeep of these sustainable and eco-friendly rooftop ecosystems.

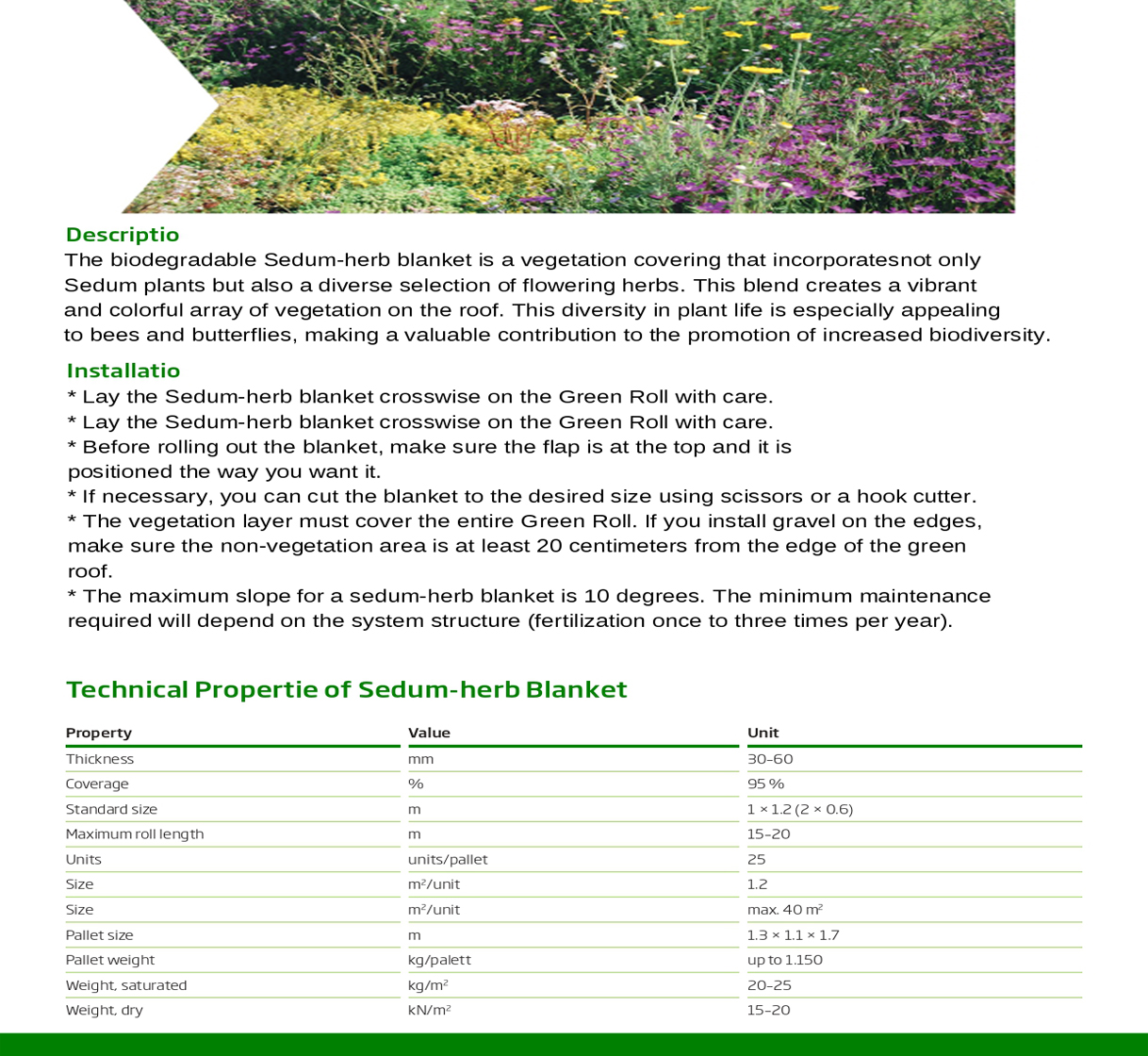

Sedum Herb Blanket

An eco-friendly green roof system featuring a lush, blanket-like arrangement of hardy Sedum plants. Comprising a specialized growing medium, it offers biodiversity, stormwater management, energy efficiency, improved air quality, and urban aesthetics. With low maintenance needs, it contributes to environmental sustainability, making it a favored choice in eco-conscious architecture and urban planning, seamlessly blending nature with the built environment.

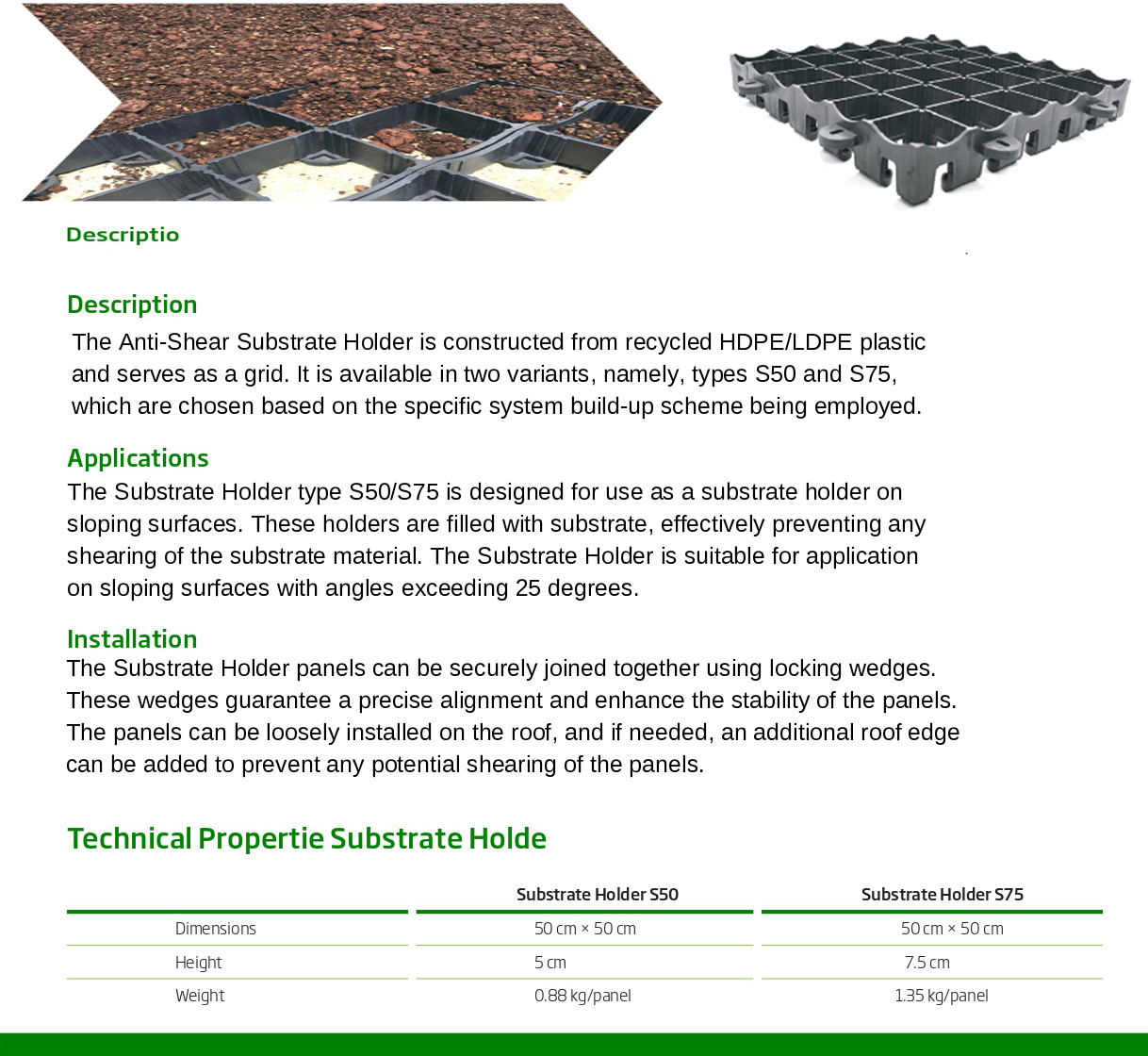

The Substrate Holder

The Substrate Holder for green roofs is an essential component designed to support and contain the growing medium and vegetation on a green roof system. It provides structural stability while allowing proper water drainage and root aeration, creating an optimal environment for plant growth. This crucial element ensures the longevity and functionality of green roofs by securely holding the substrate in place, promoting healthy vegetation, and contributing to sustainable urban development.

Lina - Renewable Energy

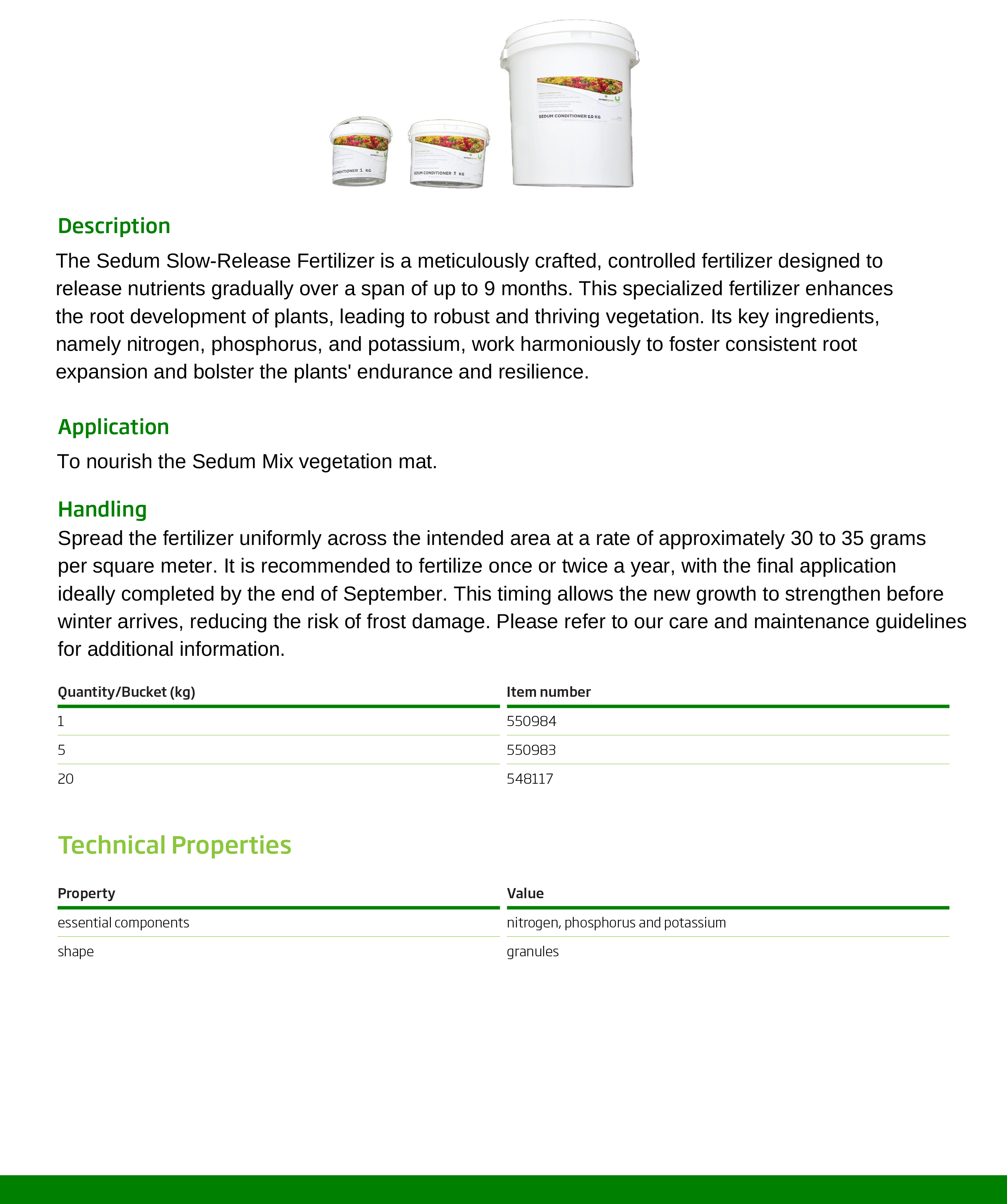

Fertilizer

Introducing our specialized Green Roof Fertilizer: A carefully formulated blend designed to promote optimal growth and vitality in your green roof vegetation. This slow-release fertilizer offers a controlled nutrient release over an extended period, ensuring sustained nourishment for your plants. Enriched with essential elements like nitrogen, phosphorus, and potassium, it encourages robust root development, resilience, and resistance to environmental stressors. When applied as per our recommended guidelines, it fosters lush, healthy, and vibrant green roofs. Elevate your rooftop oasis with our Green Roof Fertilizer today.

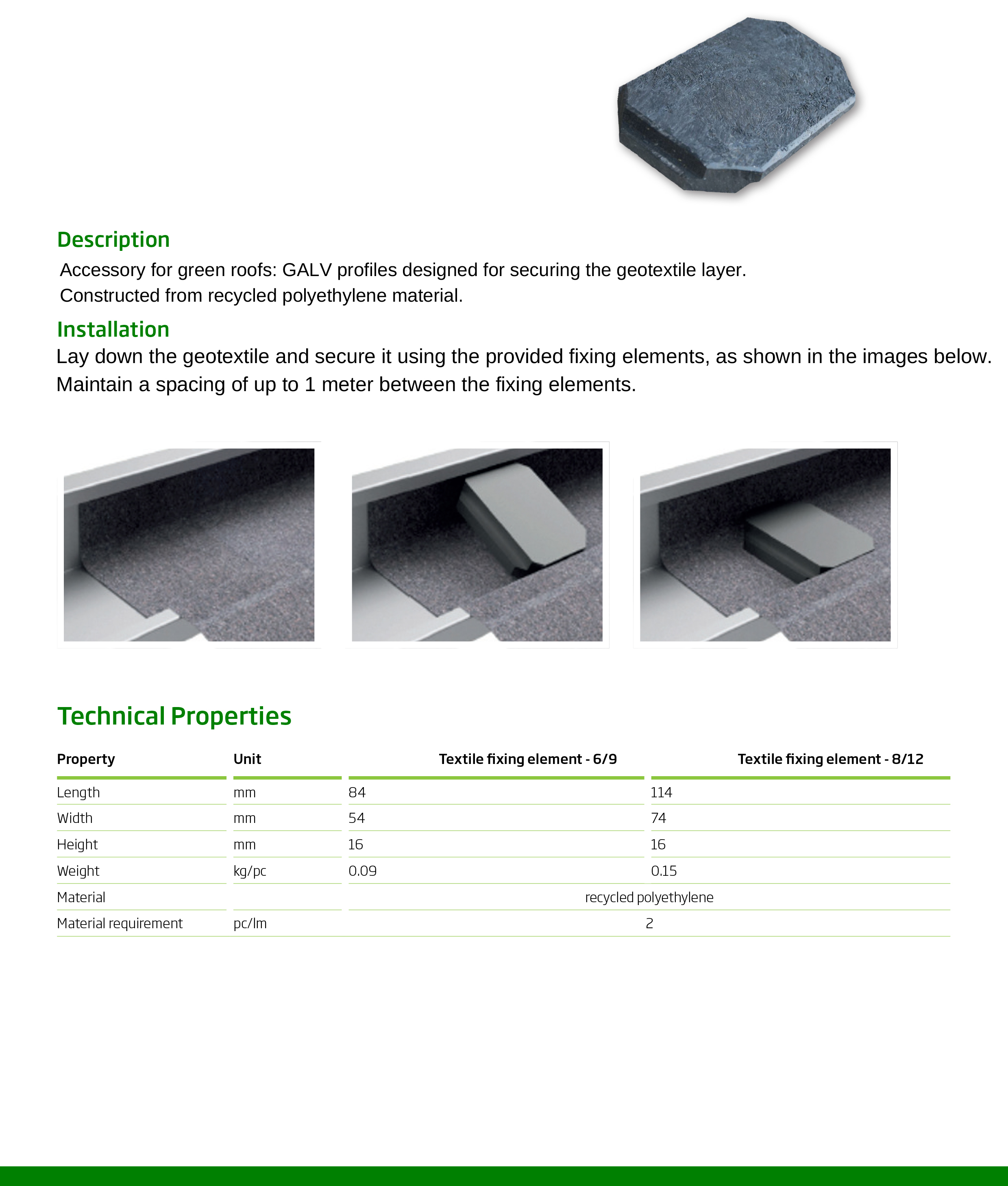

Textile fixin

Introducing our Green Roof Textile Fixing Solution: A reliable and durable system designed to secure geotextile layers on your green roof. Crafted from high-quality materials, these fixing elements ensure a secure and long-lasting installation. The provided images offer a clear guide on how to effectively use this system to lock the geotextile in place. With a recommended spacing of up to 1 meter between fixing elements, you can confidently maintain the stability and integrity of your green roof's geotextile layer. Invest in our Green Roof Textile Fixing Solution for a dependable and hassle-free installation process.

Lina - Renewable Energy

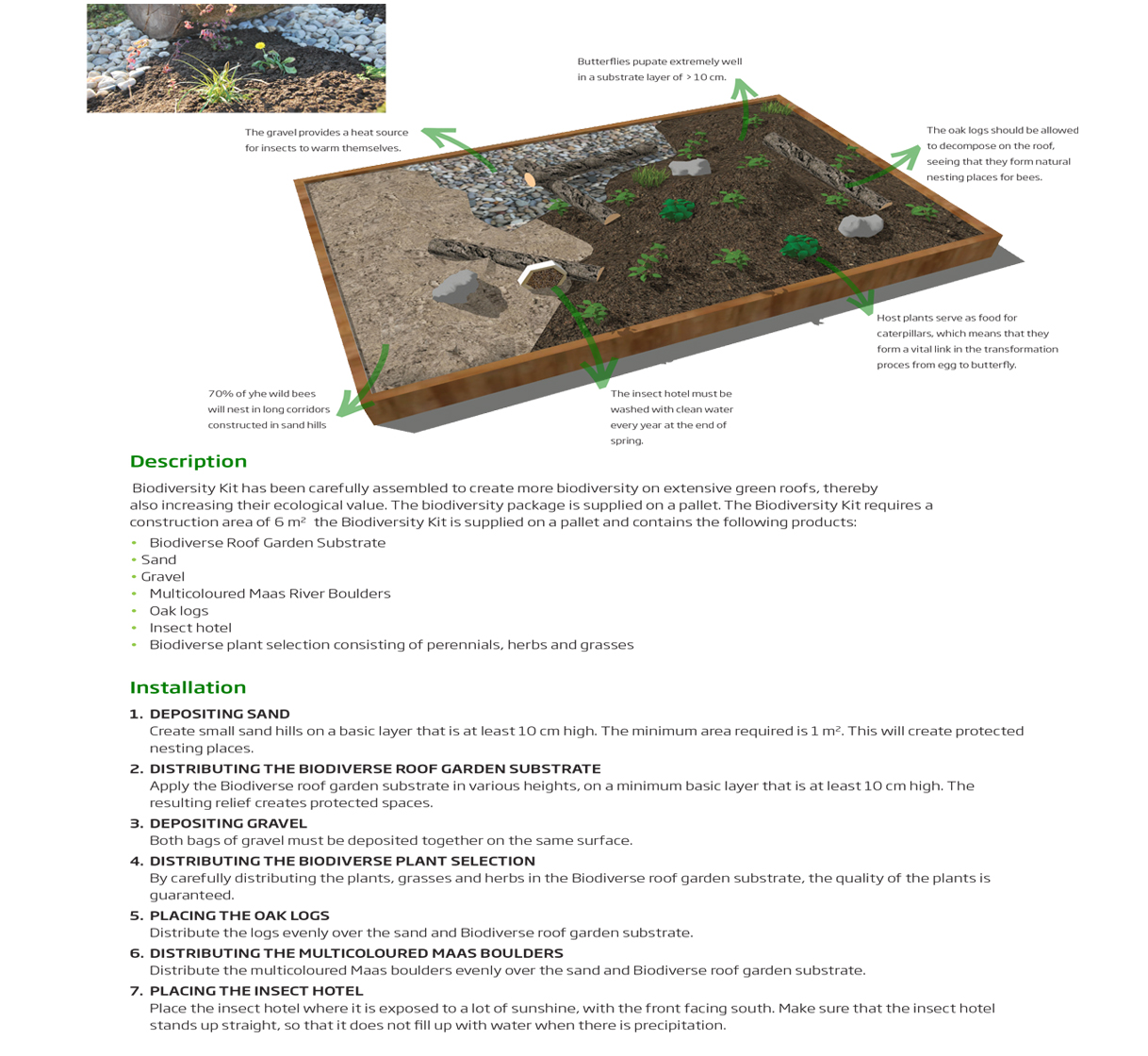

Biodiversity Kit

It is a comprehensive collection aimed at enhancing biodiversity on extensive green roofs, boosting their ecological value. Provided on a pallet and requiring a 6 m² construction area, the kit includes Biodiverse Roof Garden Substrate, sand, gravel, Multicoloured Maas River Boulders, oak logs, an insect hotel, and a diverse plant selection featuring perennials, herbs, and grasses. This curated package transforms green roofs into thriving ecosystems, fostering a diverse range of plant and animal life.

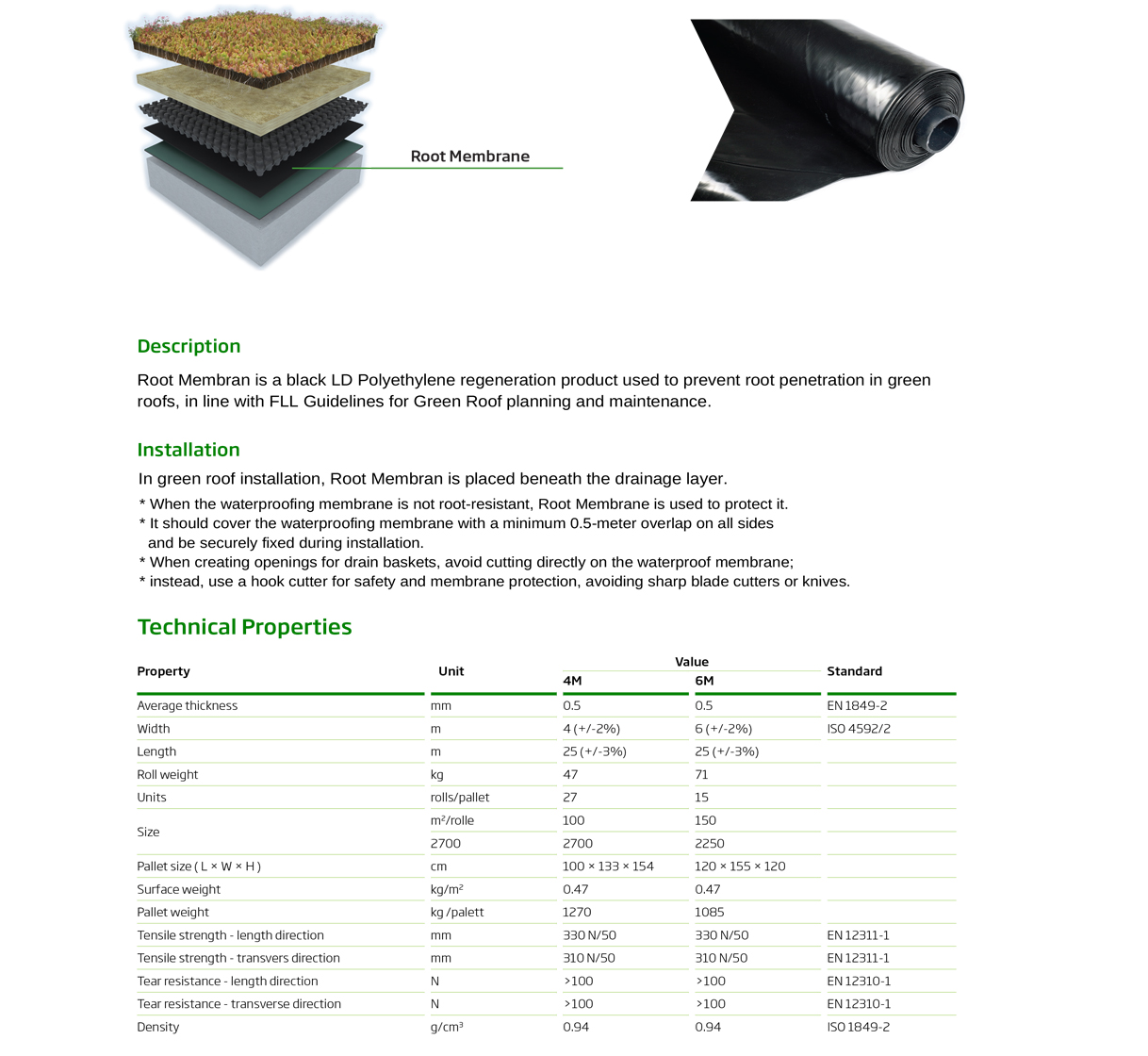

Root Membran

Root Membran is a highly effective black LD Polyethylene regeneration product meticulously crafted to serve as a robust defense against root penetration in green roof applications. Its design and application align seamlessly with the comprehensive guidelines established by the FLL for the planning and ongoing maintenance of green roofs. This membrane plays a vital role in preserving the integrity and longevity of green roof systems while promoting sustainable and eco-friendly construction practices.

Lina - Renewable Energy

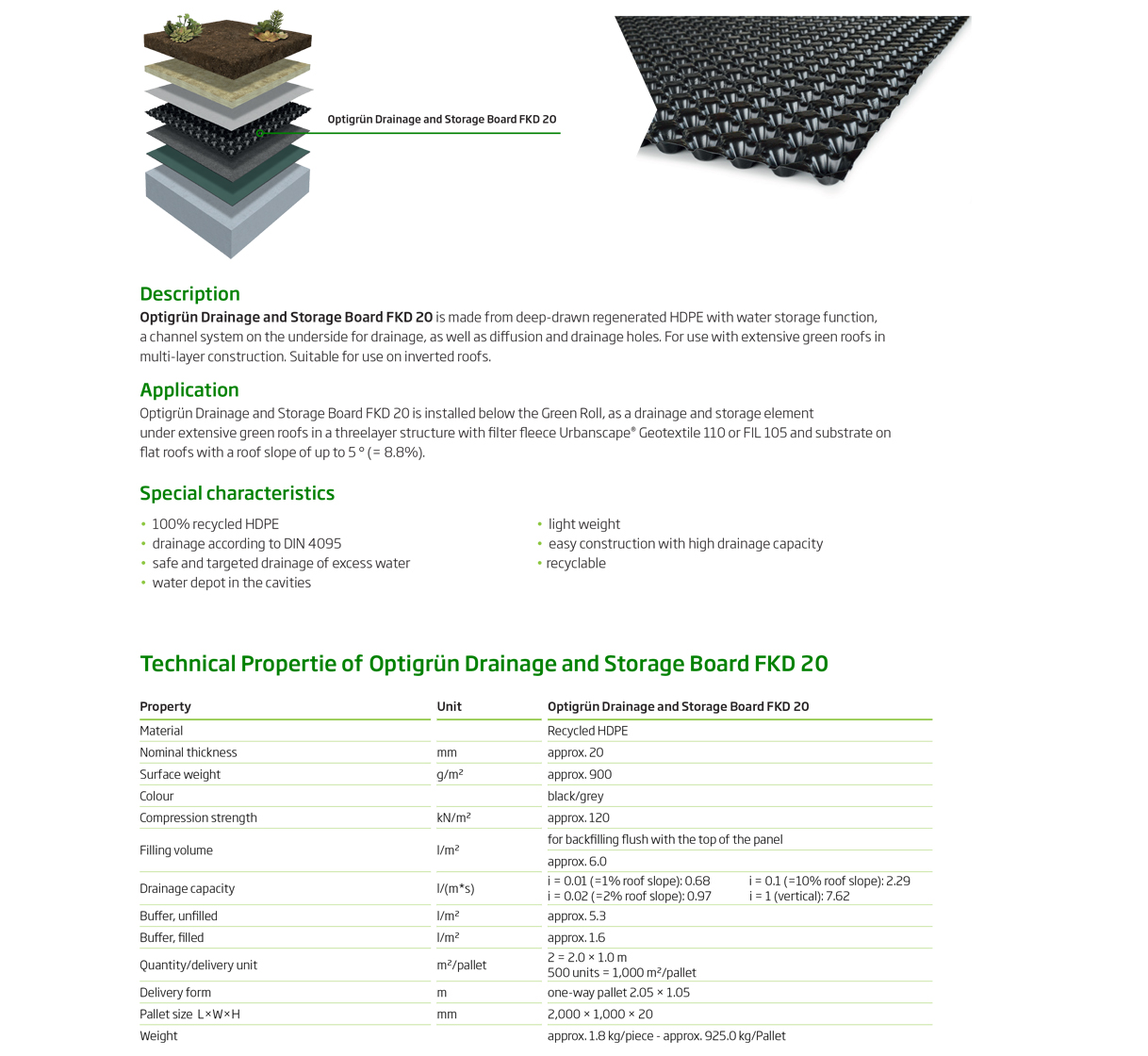

Optigrün Drainage and Storage Board FKD 20

The Optigrün Drainage and Storage Board FKD 20 is a purpose-built component crafted from deep-drawn regenerated HDPE (High-Density Polyethylene) with multifunctionality. It features water storage capabilities, an underside channel system for efficient drainage, as well as diffusion and drainage holes. Designed specifically for multi-layer construction in extensive green roofs, it's also suitable for application in inverted roof systems. This versatile board contributes to effective water management and vegetation support in green roofing projects.

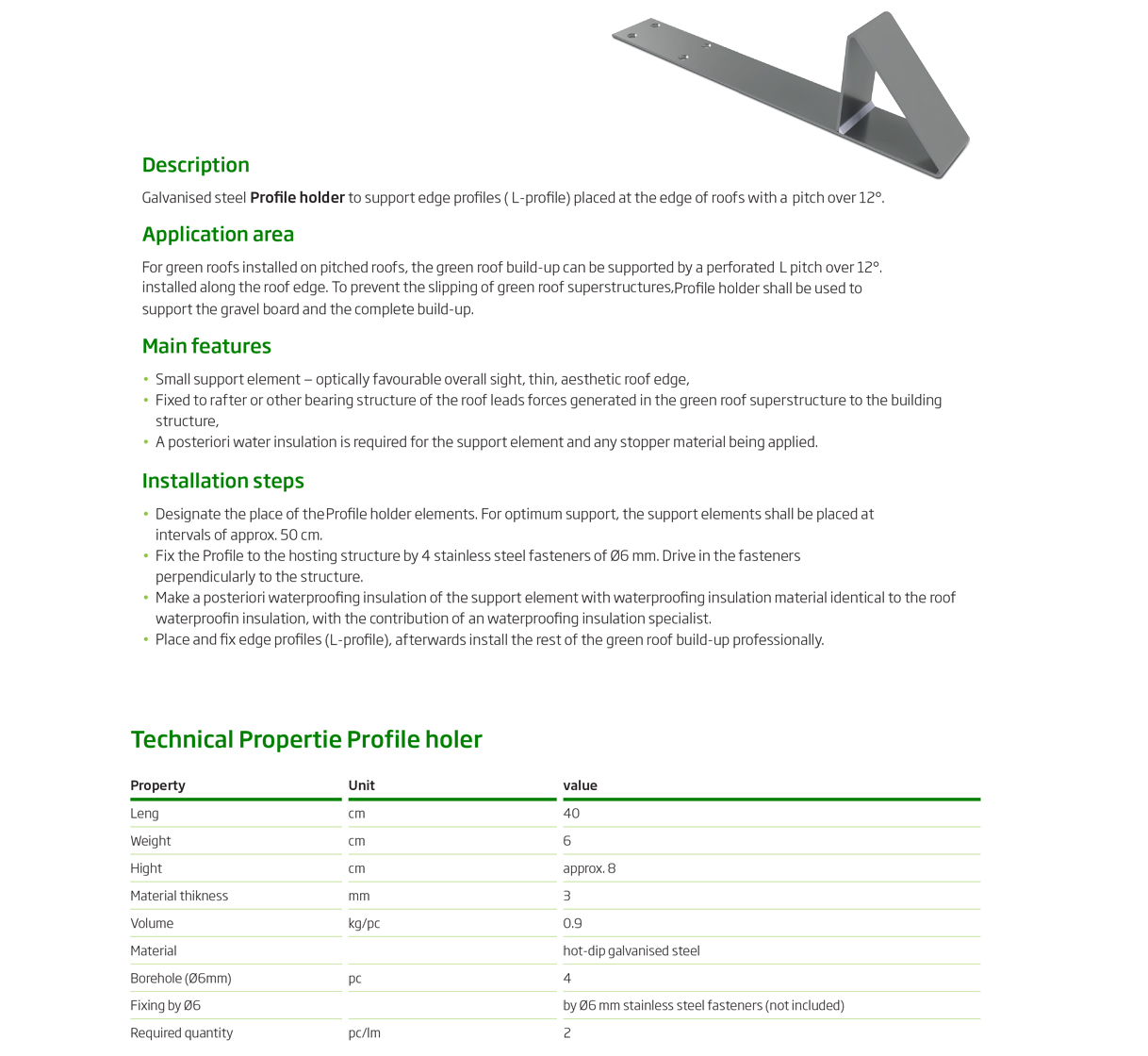

Galvanized steel profile holder

The galvanized steel profile holder is engineered for the secure placement and support of L-profile edge profiles on roofs characterized by a pitch exceeding 12 degrees. This robust holder ensures the stability and durability of the edge profiles, contributing to the overall structural integrity of the roofing system.

Lina - Renewable Energy

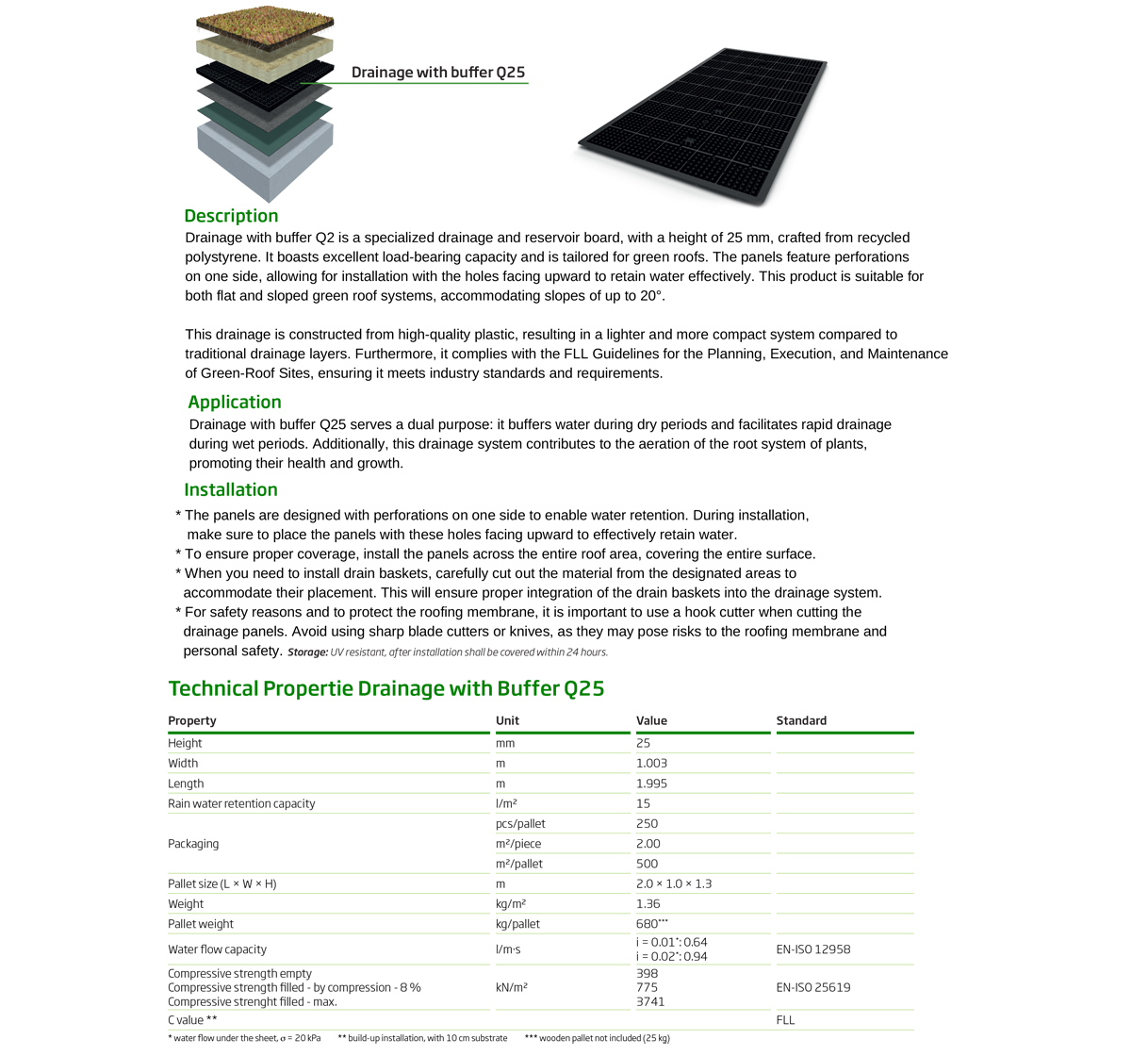

Drainage with buffer Q25

Drainage with buffer Q2 is a dedicated drainage and reservoir board, standing at a height of 25 mm, meticulously crafted from recycled polystyrene. It excels in its load-bearing capacity and is meticulously designed for green roofs. These panels are intelligently perforated on one side, facilitating installation with the perforated side facing upward to enhance water retention. This versatile product is compatible with both flat and sloped green roof systems, accommodating slopes of up to 20° with ease.

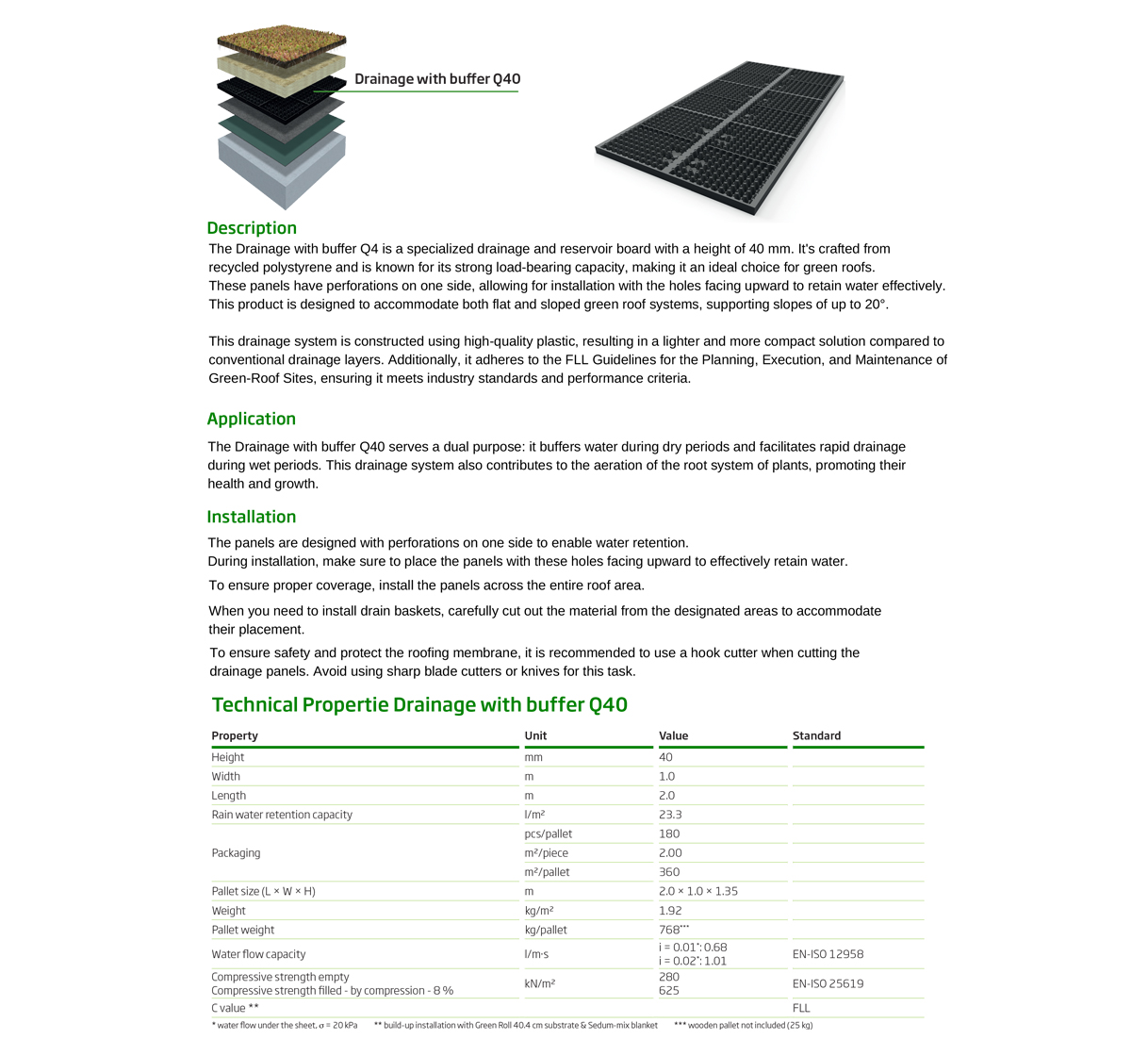

Drainage with buffer Q40

The Drainage with buffer Q40 is a purpose-built drainage and reservoir board, standing at a height of 40 mm. It's expertly crafted from recycled polystyrene, renowned for its robust load-bearing capacity, making it a top choice for green roofs. These panels are ingeniously designed with perforations on one side, enabling installation with the perforated side facing upward to optimize water retention. This versatile product is suitable for use in both flat and sloped green roof systems, capable of accommodating slopes of up to 20° with ease.

Lina - Renewable Energy

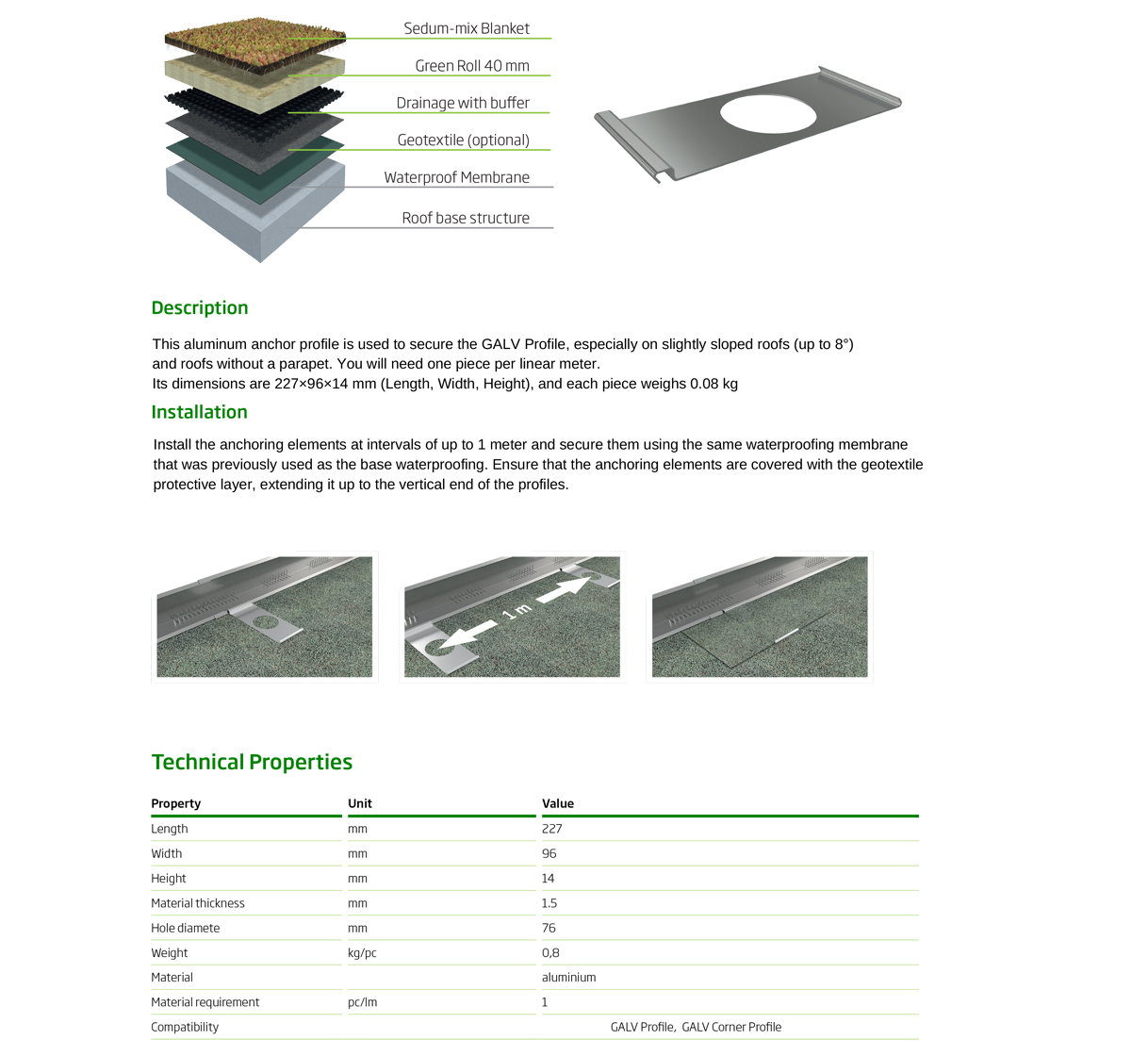

Aluminum anchor profile

The aluminum anchor profile serves as a reliable means to secure the GALV Profile, particularly on roofs with a slight slope (up to 8°) and roofs lacking a parapet. Each linear meter requires one of these profiles for effective installation. These profiles have dimensions of 227×96×14 mm (Length, Width, Height) and are lightweight, with each piece weighing just 0.08 kg.

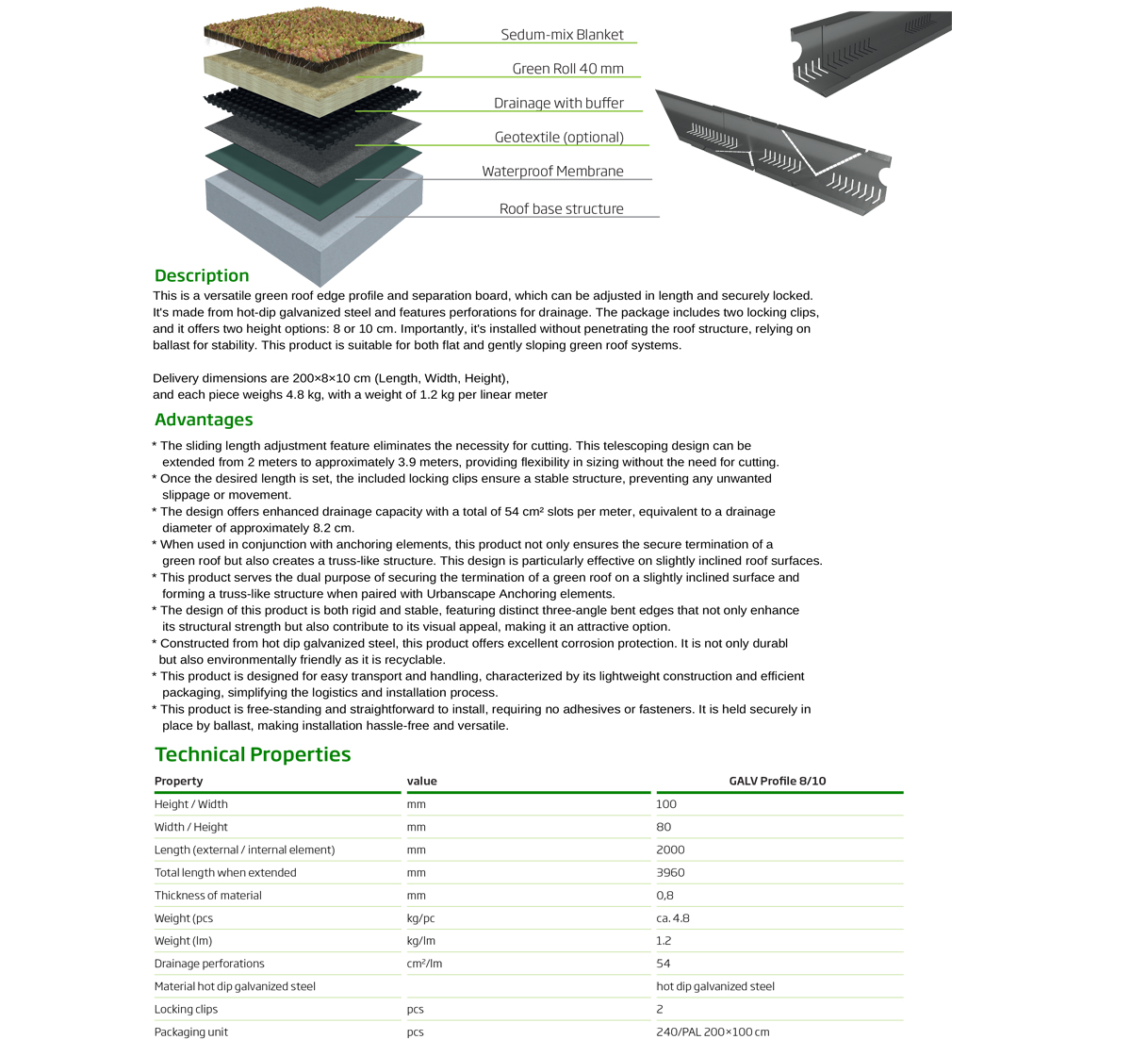

Versatile green roof edge profile

Introducing a versatile green roof edge profile and separation board designed for adaptability and secure installation. Crafted from hot-dip galvanized steel, this product boasts both strength and durability, complete with drainage perforations for efficient water management. The package includes two locking clips for added stability. It offers a choice between two heights: 8 or 10 cm, catering to various project needs. What sets this product apart is its non-invasive installation, ensuring the roof structure remains intact. It relies on ballast for stability, making it a practical choice for both flat and gently sloping green roof systems. This versatile solution offers ease of use without compromising on performance.

Lina - Renewable Energy

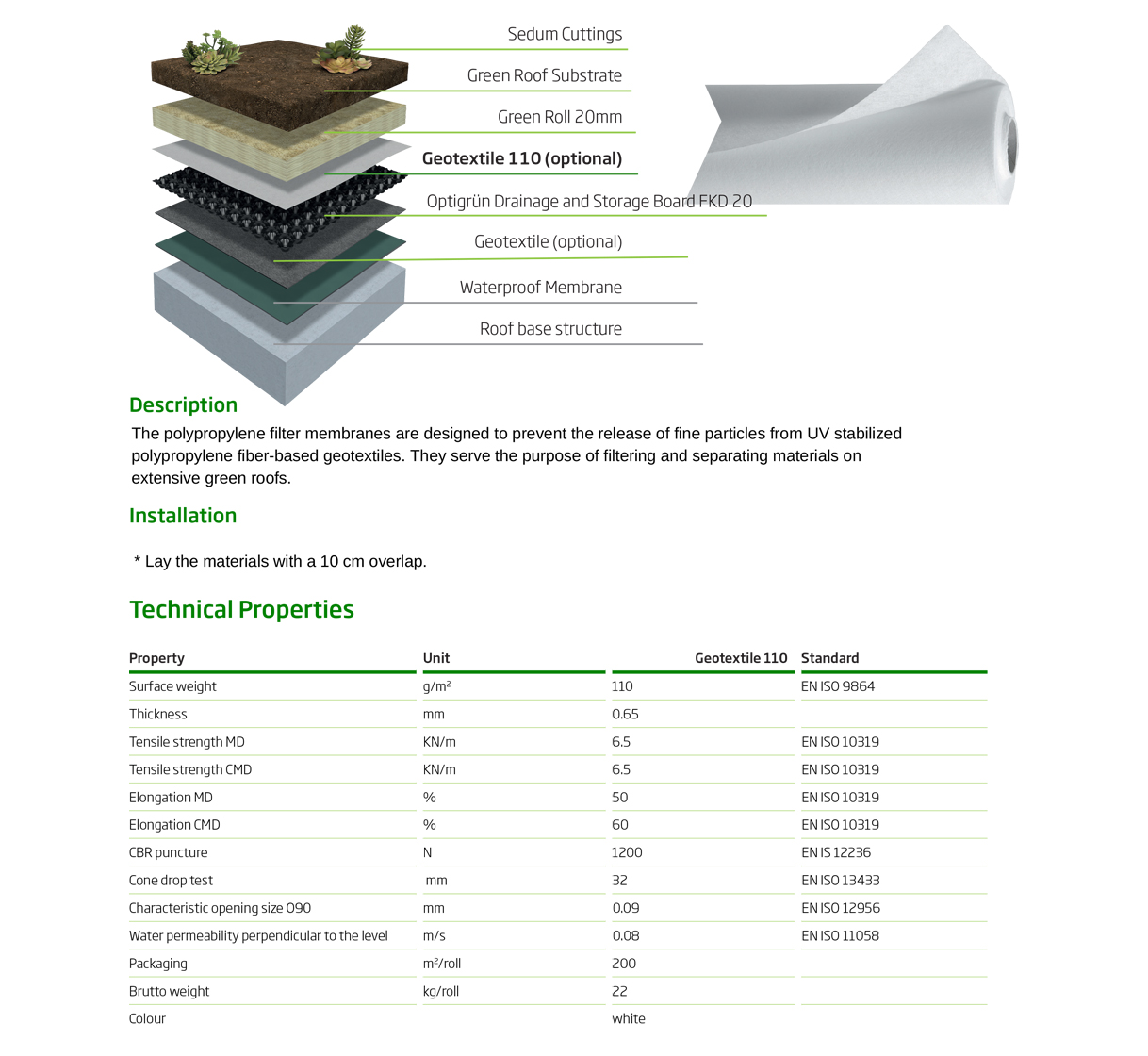

Specialized polypropylene filter membranes

These specialized polypropylene filter membranes provide a critical layer of protection by preventing the escape of minute particles from geotextiles made with UV-stabilized polypropylene fibers. This vital function plays a pivotal role in filtering and separating materials within extensive green roof systems, ensuring their optimal performance and longevity.

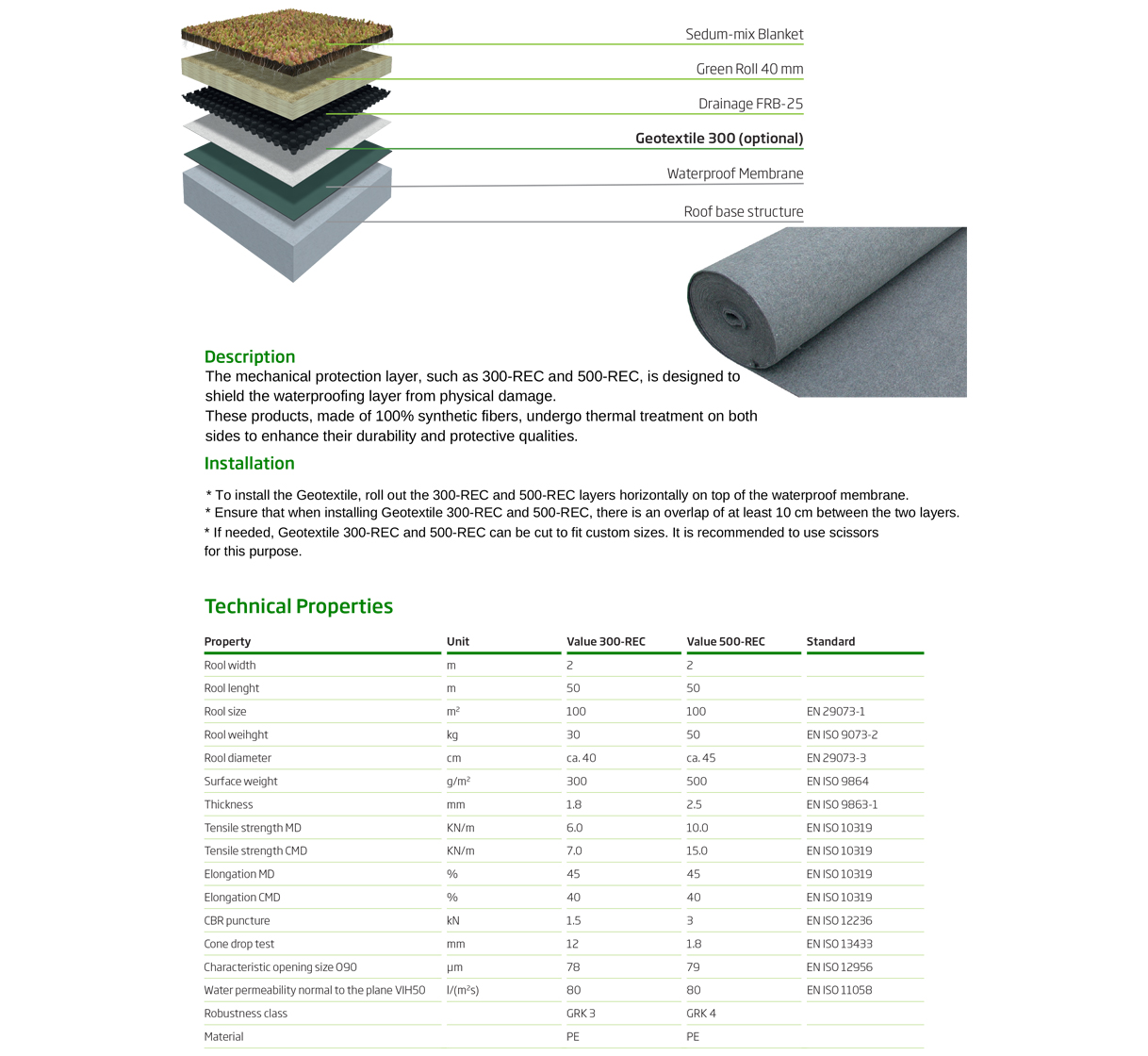

Mechanical protection layer

The mechanical protection layer, represented by products like 300-REC and 500-REC, serves as a robust barrier to safeguard the waterproofing layer from potential physical damage. Crafted entirely from synthetic fibers, these materials undergo thermal treatment on both sides to fortify their durability and enhance their protective attributes.
